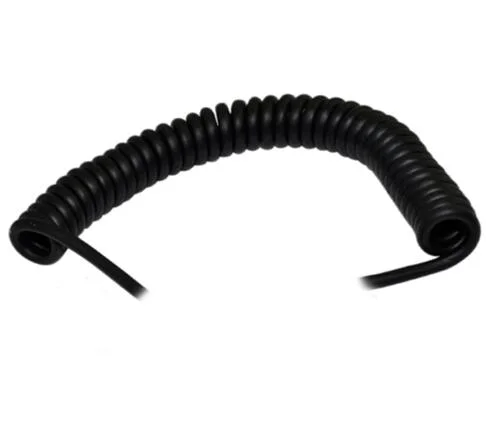

Circle Diameter PU Fexible Cable
- PU Fexible Cable
- Circle Diameter Fexible Cable
- Circle Diameter PU Fexible Cable
Our Circle Diameter PU Fexible Cable Has Good Flexibility And Elasticity (Spring Elongation Length Can Reach The Original Length Of 3 to 10 Times).
Good Cold Resistance,Flame Retardant,Oil Resistance And Abrasion Resistance.
According To Different Occasions Requirement We Can Produce Kinds Of Spiral Cables and Wires,Evironmental Halogen Free For RoHS,REACH And So On Industry Standards.
Description of Senkin Circle Diameter PU Fexible Cable
- Conductor Structure: See Common Conductor Structure Table Or Customization
- Insulation : TPEE/FEP/MPPO/TPV/PP/HDPE
- Sheath Material : General With Polyester Type TPU or Polyether Type TPU
- Working Temperature : -60 Degree---125 Degree
- Production Range: Standard Section 0.03-6 Square Meter Or Customization
- Multiple Conductors: 1-37 Conductors Or Customization
Feature Of Circle Diameter PU Fexible Cable
- Flexibility
- Elasticity (Spring Elongation Length Can Reach The Original Length Of 3 to 10 Times)
- Cold Resistance
- Flame Retardant
- Oil Resistance
- Abrasion Resistance.
Specification Data Sheet Of Our Nomal Halogen-free Flame Retardant PU Helix Cable
| P/N | Normal Spec. | Twisting OD | Resosyamce/KM | Standard OD | Conductor(Option) | Filling(Option) |
| 10 | 105/0.2541/2.588 | 2.588 | <5 | 3.2 | 99.99% Copper Tinned Copper Varnished Wire Sliver-Plated Copper Nickel Copper | Kevlar/Nylon |
| 12 | 65/0.254 1/2.05 | 2.05 | <7 | 2.65 | Kevlar/Nylon | |
| 14 | 41/0.254 1/1.63 | 1.63 | <10 | 2.2 | Kevlar/Nylon | |
| 16 | 26/0.254 1/1.29 | 1.29 | <15 | 1.9 | Kevlar/Nylon | |
| 18 | 41/0.16 165/0.08 105/0.11 | 1.02 | <25 | 1.6 | Kevlar/Nylon | |
| 20 | 20/0.16 110/0.08 70/0.1 | 0.81 | <35 | 1.4 | Kevlar/Nylon | |
| 22 | 17/0.16 65/0.08 41/0.1 | 0.64 | <55 | 1.2 | Kevlar/Nylon | |
| 24 | 26/0.1 41/0.08 120/0.05 | 0.58 | <90 | 1 | Kevlar/Nylon | |
| 26 | 7/0.16 24/0.08 65/0.05 | 0.48 | <125 | 0.9 | Kevlar/Nylon | |
| 28 | 11/0.1 19/0.08 45/0.05 | 0.38 | <210 | 0.85 | Kevlar/Nylon | |
| 30 | 7/0.1 19/0.06 28/0.05 1/0.3 | 0.3 | <320 | 0.7 | Kevlar/Nylon | |
| 32 | 1/0.254 7/0.08 18/0.05 | 0.2 | <500 | 0.55 | Kevlar/Nylon | |
| 34 | 1/0.2 7/0.06 | 0.2 | <560 | 0.45 | Kevlar/Nylon | |
| 36 | 1/0.16 7/0.05 | 0.16 | <870 | Kevlar/Nylon | ||
| 38 | 1/0.127 7/0.04 | 0.12 | <1400 | Kevlar/Nylon | ||
| 40 | 1/0.08 | 0.08 | <3500 | Kevlar/Nylon |
Specification Data Sheet Of Our High Temperature Resistant Circle Diameter PU Fexible Cable
| P/N | Normal Spec. | Twisting OD | Resosyamce/KM | Standard OD | Conductor(Option) | Filling(Option) |
| 10 | 105/0.2541/2.588 | 2.588 | <5 | 3.2 | 99.99% Copper Tinned Copper Sliver-Plated Copper Nickel Copper | NO |
| 12 | 65/0.254 1/2.05 | 2.05 | <7 | 2.65 | NO | |
| 14 | 41/0.254 1/1.63 | 1.63 | <10 | 2.2 | NO | |
| 16 | 26/0.254 1/1.29 | 1.29 | <15 | 1.9 | NO | |
| 18 | 41/0.16 165/0.08 105/0.11 | 1.02 | <25 | 1.6 | NO | |
| 20 | 20/0.16 110/0.08 70/0.1 | 0.81 | <35 | 1.4 | NO | |
| 22 | 17/0.16 65/0.08 41/0.1 | 0.64 | <55 | 1.2 | NO | |
| 24 | 26/0.1 41/0.08 120/0.05 | 0.58 | <90 | 1 | NO | |
| 26 | 7/0.16 24/0.08 65/0.05 | 0.48 | <125 | 0.9 | NO | |
| 28 | 11/0.1 19/0.08 45/0.05 | 0.38 | <210 | 0.85 | NO | |
| 30 | 7/0.1 19/0.06 28/0.05 1/0.3 | 0.3 | <320 | 0.7 | NO | |
| 32 | 1/0.254 7/0.08 18/0.05 | 0.2 | <500 | 0.55 | NO | |
| 34 | 1/0.2 7/0.06 | 0.2 | <560 | 0.45 | NO | |
| 36 | 1/0.16 7/0.05 | 0.16 | <870 | NO | ||
| 38 | 1/0.127 7/0.04 | 0.12 | <1400 | NO | ||
| 40 | 1/0.08 | 0.08 | <3500 | NO |
Q: Are you trading company or manufacturer?
A: We are manufacturer.
Q: How about the quality?
A: Our manufacturer has passed ISO9001 and TS16949, all the products comply with RoHS and CE, and 100% tested before delivery.
Q: What's the order procedure?
A: First we discuss order details, production details by email or Phone call. Then we issue you a PI for your confirmation. For old customer, you will be requested to do pre-paid full payment or deposit advanced payment before we go into production. After we get the deposit, we start to process the order. Before production has been finished, we will contact you for shipment details & balance payment. After balance payment is settled, we'll prepare the shipment immediately. For new customer, 100% T/T before production.
Q: How about your lead time?
A: Generally it is 7-10 days if the goods are in stock, or 15-25 days if the goods are not in stock. It depends on order quantity.
Q: Do you accept customized products?
A: Yes, we can provide customized products, please send us your drawing and all the requirements to proceed the project.
Q: How do you deliver the goods?
A: Goods can be delivered by air express or by sea; International Express as FEDEX, UPS, DHL, TNT, etc. You can choose the best way as you want.
Q: How can I get a sample?
A: Please send us your drawing and specification, then we will arrange the sample, we will charge the sample cost to the customer.
Q: What is your payment term?
A: 100% payment in advance before shipment. T/T and Western Union are available.
