KY-900ZX Master carton packing machine (can be customized) : :

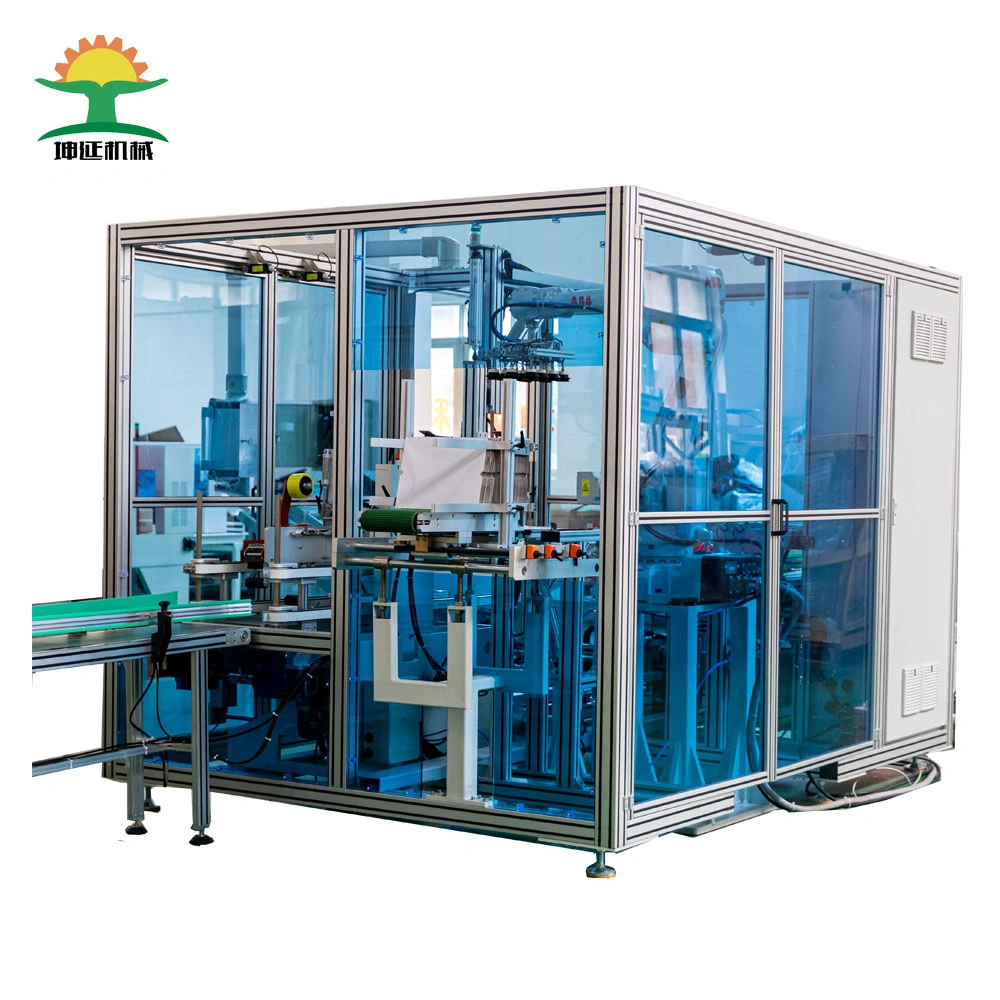

Industrial ABB Robot Arm Automation Robot Case Packing Machine


GENERAL FEATURES:
  1. The vertical cartoning machine was designed for installation downstream of the packaging line, but also as an independent unit.
  2. The pick & place ensures fast and accurate picking of products arriving from the loading conveyor belt and precise box filling. Different types of products can be processed.
  3. Construction is roust, but at the same time they are all 'separable' to allow the operator full access. Having filled the boxes, they are pushed towards the exit and the machine closes the flaps and tapes the 'pads'.
  4. Options available, hot glue.
  5. Finally, a cartoning machine with all the automatic and automated adjustments.

SPECIAL FEATURES:
  1. Compactnes, reduced size, high speed up to 20boxes/minute with multiple pick & place.
  2. Automated adjustments.
  3. Fast format change, easy access to the parts to adjust, movements on the dovetail guides and recirculating ball slides.
  4. Siemens ,Panasonic,Omron or Mitsubishi management PLC.
LAYOUT:

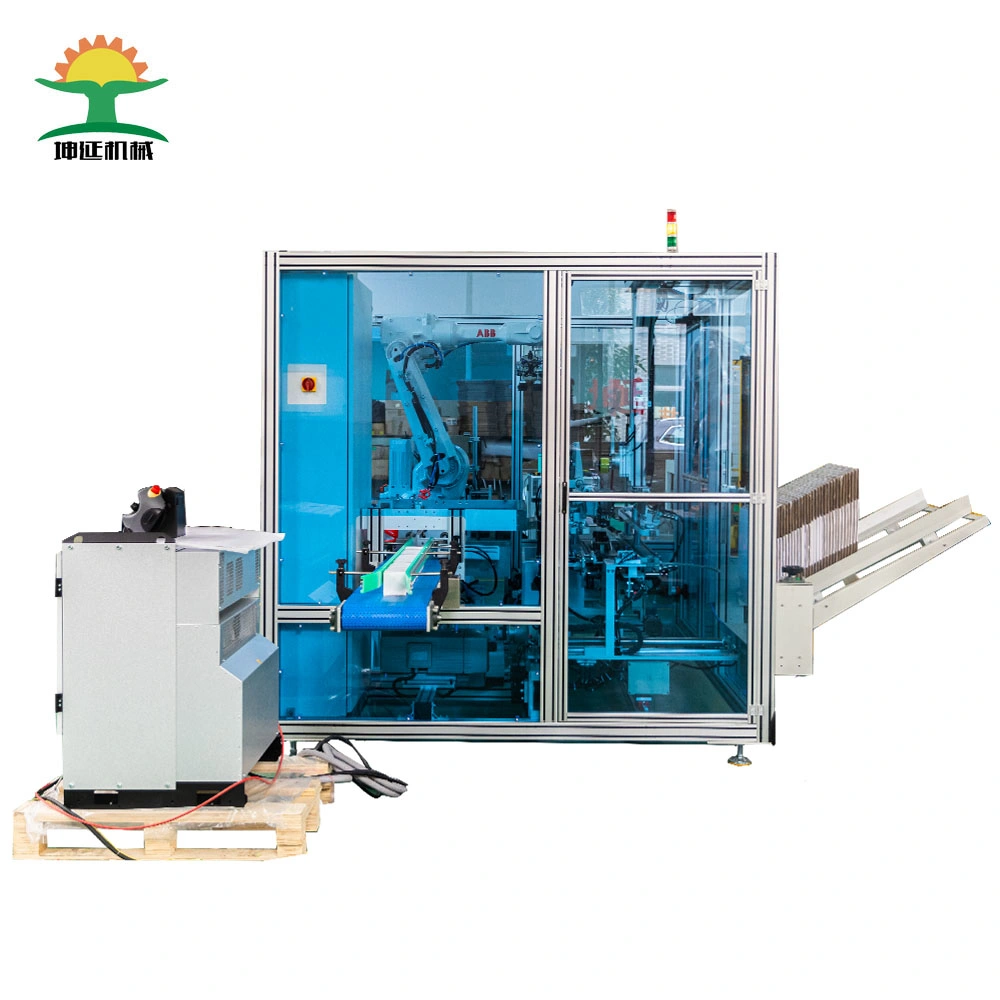

Industrial ABB Robot Arm Automation Robot Case Packing Machine




    MAIN DETAILS:

    Industrial ABB Robot Arm Automation Robot Case Packing Machine
    Automatic case erector
    With filling from the side for use with American boxes or pre-formed boxes. The box is opened by gripping the box using the double set of suction cups on both sides of the box.


    Industrial ABB Robot Arm Automation Robot Case Packing Machine
    SIDE LOAD CASE PACKER
    Filling from the box side. For insertion of products in boxes of various nature: blisters, thermoformed trays, boxes of food, bags of food with a square or pillow base. The loading system varies based on the type of product.


    Industrial ABB Robot Arm Automation Robot Case Packing Machine
    PRODUCT FEEDING BELT
    Products are placed on the feeding belt that bring it to the filling zone. The feeding system varies based on the type of product.


    Industrial ABB Robot Arm Automation Robot Case Packing Machine
    Automatic case closer
    The case closer automatically folds the side case flaps and closes them with tape.


    TECHNICAL PARAMETERS:

    No.NameValue
    1Output 6-18 case/min. based on product.
    3Power 3KW
    4Vacuum suction (self-vacuum pump) 0.6MPa
    5Weight 1800KG
    6Shape size
    (connection part is not included)
    L3500 * W1800 * H2000 mm (customized according to carton size)
    7Working voltage 380V/50HZ


    CONFIGURATION:
    Industrial ABB Robot Arm Automation Robot Case Packing Machine


    Industrial ABB Robot Arm Automation Robot Case Packing Machine


    SHIPPING:


    Industrial ABB Robot Arm Automation Robot Case Packing Machine
