| SPECIFICATION LIST |
| MODEL:12"+12"SCOOTER |
| | | | | |
| NO. | PARTS | MATERIAL | COLOR | SPECIFICATION |

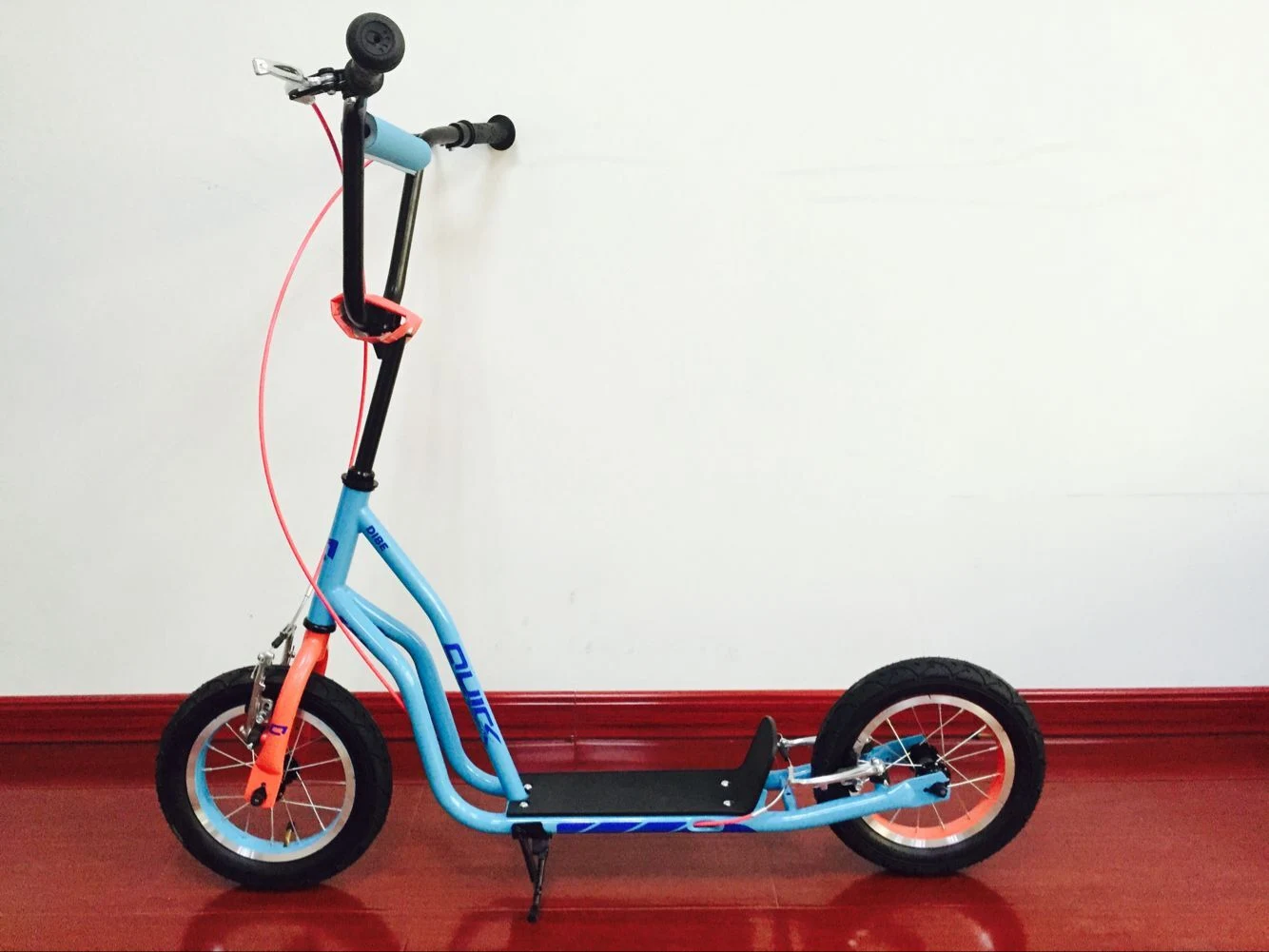

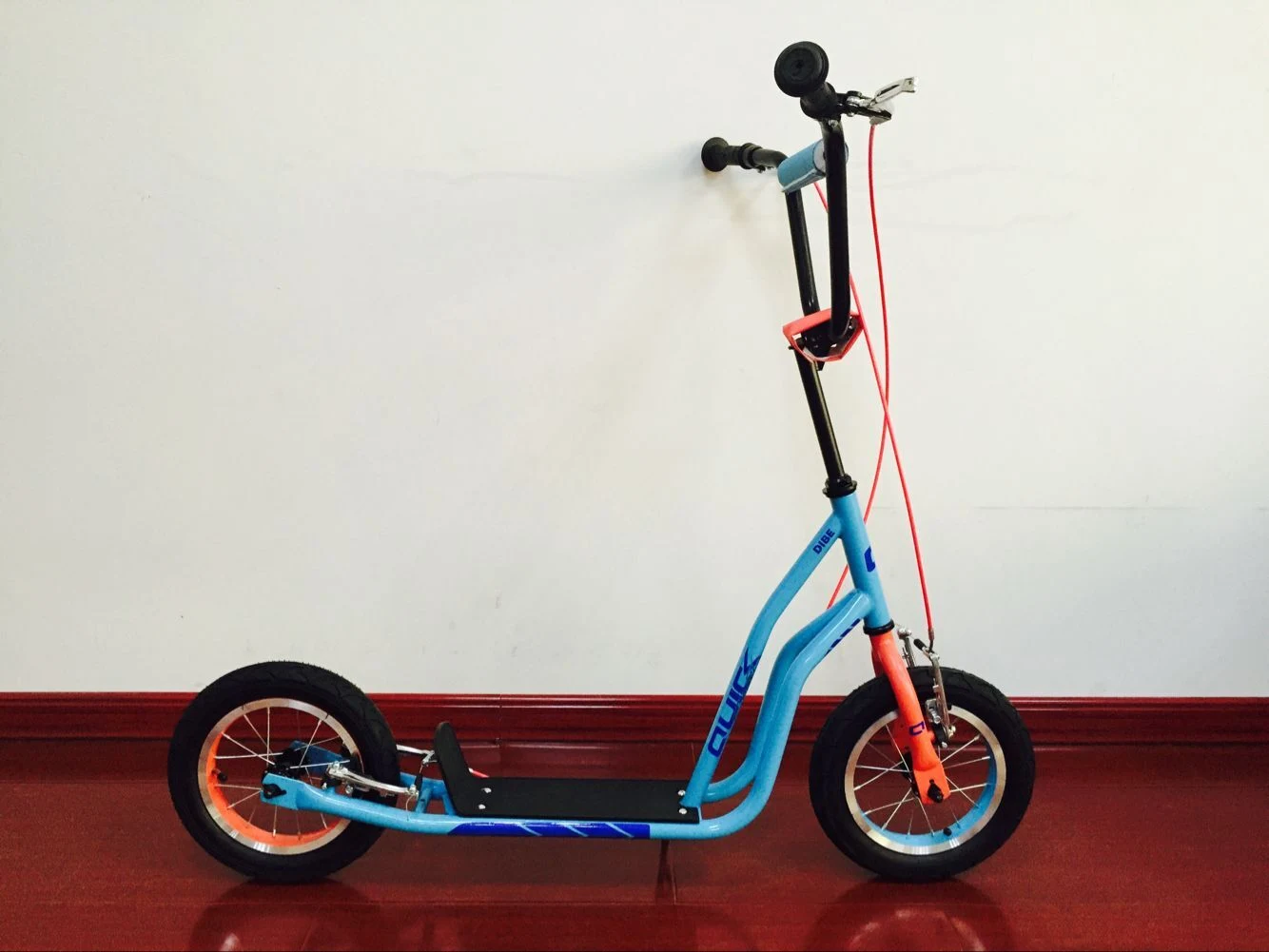

| 1 | FRAME | STEEL | PAINT | 12"ALLOY SCOOTER FRAME. SEE THE PHOTO.100*3/8 |
| 2 | FORK | STEEL | PAINT | 12"SEE THE PHOTO 28BMX 100*3/8 |
| 3 | HANDDLE BAR | STEEL | ED | V- TYPE W/CROSS BAR ,ф22.2*1.2T*660mm H:210mm |
| 4 | STEM | STEEL | ED | FOUR BOLT-TYPE,ALLOY COVER PLATE,ф22.2*1.4T*260mm |
| 5 | GRIP | PVC | BK | ф22.2*105mm.,PVC |
| 6 | HEAD PARTS | STEEL | ED | 8PCS.ф22.2*ф30*ф27 |
| 7 | RIM | ALLOY | COLOR | 12"*1.75 14G*16H SINGLE WALL W/SIDE CNC |
| 8 | F:HUB | STEEL | ED | 3/8"*14G*16H*100W*135mm W/SAFE HOOK,CAP NUT |
| 9 | R:HUB | STEEL | ED | 3/8"*14G*16H*100W*135mm W/SAFE HOOK,CAP NUT |
| 10 | SPOKE | STEEL | UCP | 45#,14G,W/14mm W/STEEL NIPPON |
| 11 | TYRE | RUBBER | BK | 12"*2.125 FOLDING PATTERN |
| 12 | INNER TUBE | RUBBER | BK | 12"*2.125 BUTYL TYPE,A/V |
| 13 | RIBBON | RUBBER | BK | 12"*22 |
| 14 | BRAKE LEVER | ALLOY | BK/ SILVER | MTB TYPE,2.5 FINGER W/BOLT ADJUSTMENT |
| 15 | BRAKE CABLE | STEEL | COLOR | 3P F:750*1000mm R:1460*1710mm |
| 16 | BRAKE | ALLOY | SILVER | V-BRAKE L=110 BRAKE SHOES:60MM |
| 17 | FOOTBOARD | PLASTIC | BK | 12" |
| 18 | KICKSTAND | STEEL | ED | 12" |
| 19 | BOLT | STEEL | UCP | CROSS-SHAPED BOLT,M6*35 |
| 20 | BOLT | STEEL | UCP | CROSS-SHAPED BOLT,M6*33 |
| 21 | SCREW NUT | STEEL | UCP | NYLON,M6 |
| 22 | GASKET | STEEL | UCP | ø6.6*ø12*1.6T |
| 23 | SHEATH | PVC | BK | TO ORDER CUSTOM |
| 24 | DECAL | PVC | BK | TO ORDER CUSTOM |
| 25 | INSTRUCTION | PAPER | WHITE | |
| 26 | PROTECTOR | PLASTIC | BK | M10*100 FORK PROTECOR,M15*60 CAP |
| 27 | CARTON | PAPER | BROWN | 5-PLY. |
| 28 | PAINT | | | POWDER COATING,SINGLE COLOR FOR FRAME,THE FRONT FORK CAN BE WITH DIFFERENT COLOR |
| 29 | ASSEMBLE | | | 85%SKD |
